Type Controller

Brand Name MEIANDIAN

Style brushless controller

Display YES

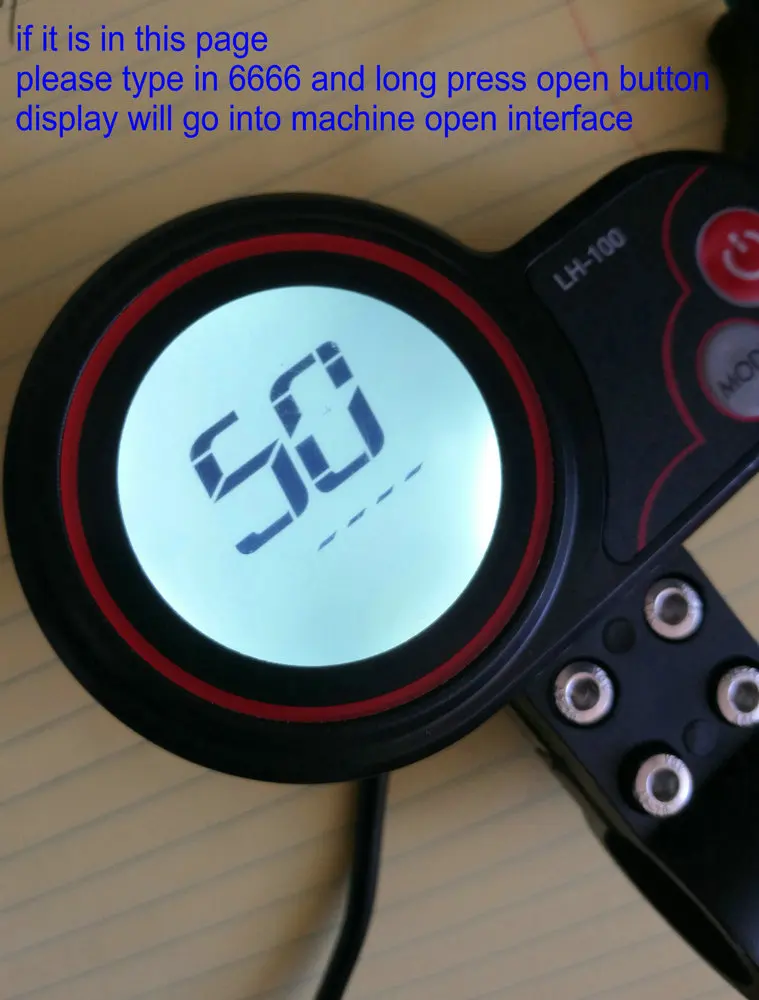

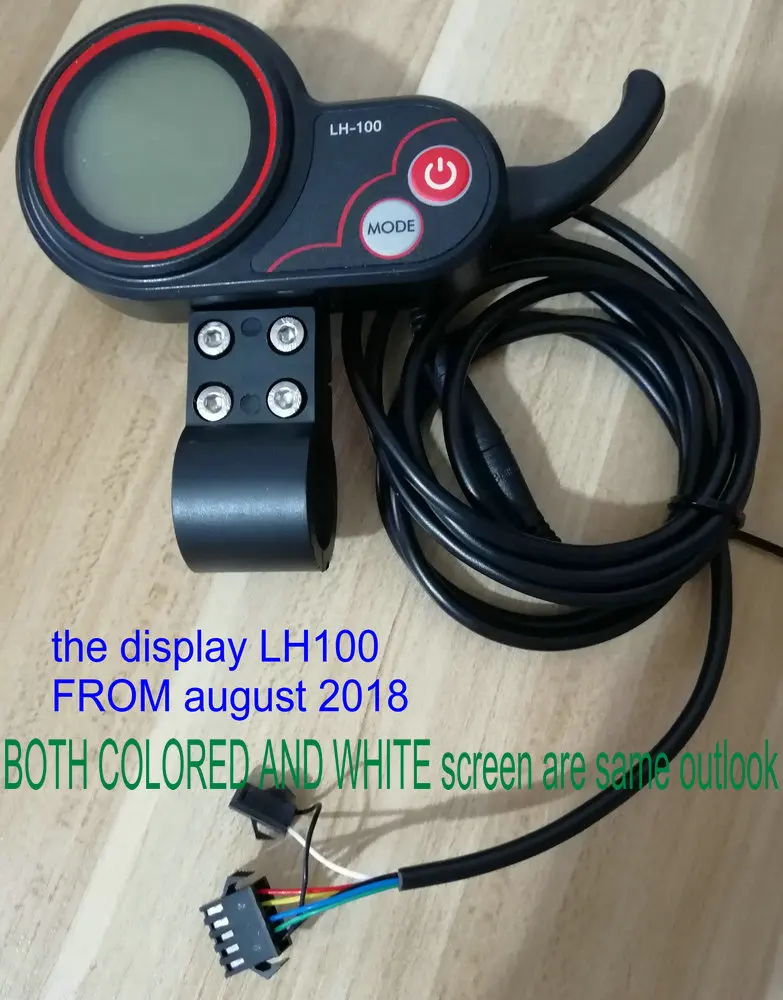

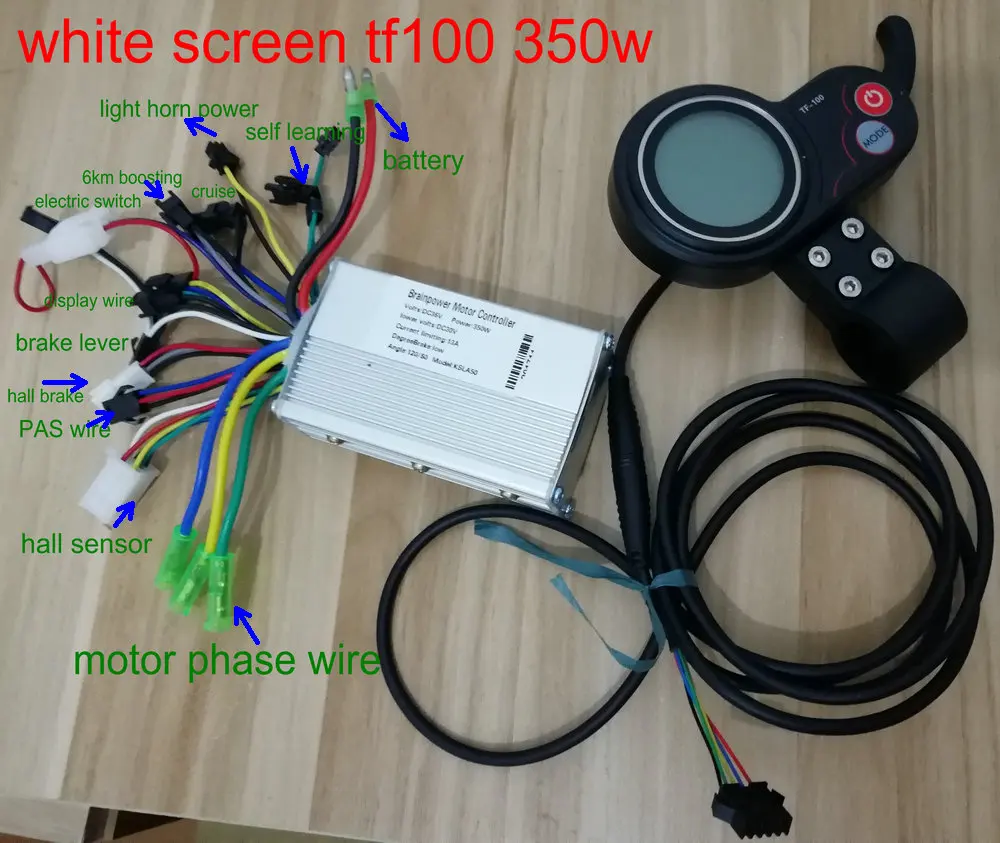

24V36V48V60V400W-3000W BLDC controller&LCD display with throttle shifter white/colored screen electric scooter MTB ebike parts Note: Upgraded products, all displayers are LH-100. If you can't accept it, please don't buy it. Display function： The LCD is a color display with a USB port and a headlight cable interface. LCD control headlights on and off. for controller >350w , now new model all have self learning wire, fit for sensor or sensor less motor, both throttle and PAS has gears, 3-9gears adjustable, we will always update the display and controller wires,if what you get is different with pictures , seller preserve the right to explain it, if it appears S0, input 6666 and long press power button you will go into. setting interface. after get goods please, Connect display together. make controller self learning to match with motor phase wire and hall sensor wire. and set display right according to instructions. and connect all wires right,there will be less problem. self learning -- bellow is how to useself learning wire to find right match of controller phase wire and hall sensor wire with your motor phase wire and hall sensor wire, this is an important step. only do this right, you will can make the whole system work rightly. -- please connect controller with battery power wire, motor phase wire, electric switch wire, throttle wire, self learning wire, then open machine after you confirm all is ok. the motor will run automatically, if the motor runs at right direction then unconnect the self learning wire after 2-3seconds. this learning action is finshed. if motor runs reverse direction, please unconnect the self learning wire then connect it soon, the motor will switch to right direction automatically,then unconnect the learning wire after 2-3seconds . you finished the learing action. please keep the learning wire unconnected after finished. brief introduction to9mosfet constant currentcontrollercommon versionwith display PH-01 rated working voltage 24V/36V/48V/60vV rated power scope: 400W-600W max current choose scope: 21A battery under voltage protection point: 19V/31.5V/42V/52V match with motor phase angle 60/120 match with various brand motor, 350W-650W controller size : 110*85*50mm/150*85*45mm(size randomly, can't be customized) from november 2017 the display is updated , please be noted HAS SELF LEARNING WIRE brief introduction to 12mosfet constant currentcontroller common versionwith display PH-01 rated working voltage 24v/36v/48v/60v rated power scope:500w-900w max current choose scope: 28A battery under voltage protection point: 19v/31.5v/42v/52v match with motor phase angle 60/120 match with various brand motor, 450w-900w controller size : 145*85*45mm brief introduction to 15mosfet constant currentcontroller common versionwith display PH-01 rated working voltage 24v/36v/48v/60v rated power scope: 650w-1100w max current choose scope: 38A battery under voltage protection point: 19v/31.5v/42v/52v match with motor phase angle 60/120 match with various brand motor, 600w-1100w controller size : 176*85*45mm all canmatch with high differential motor UNDER 4200RPM BELLOW IS 800W WITH SELF LEARNING WIRE bellow is colored backlight display +1000w controller 38A 18mosfet controller 1200w controller size 170*108*58mm For24 mosfet controller dual mode type for lithium battery rated working voltage: 24v/36v/48v/60v power available :1500w-3000w max current available: 55A SIZE:225MM*120MM*75MM Flash Deal 400W-3000W BLDC 24V36V48V60V controller&LCD display with throttle shifter white/colored screen electric scooter MTB ebike parts 0
